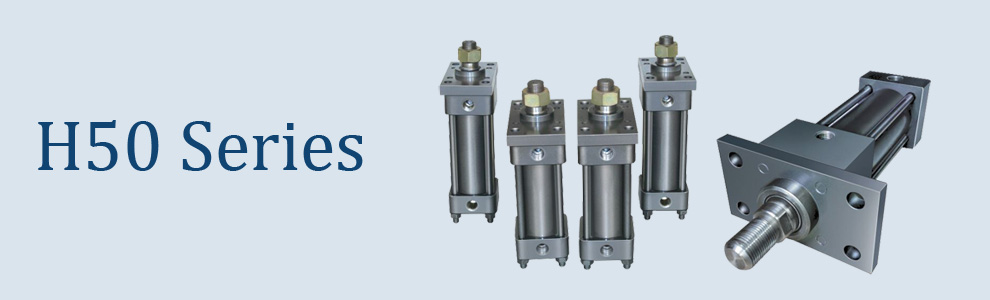

H50 Series
[ Tie rod construction
Maximum pressure - 50 bar ]
Cylinder selection guide

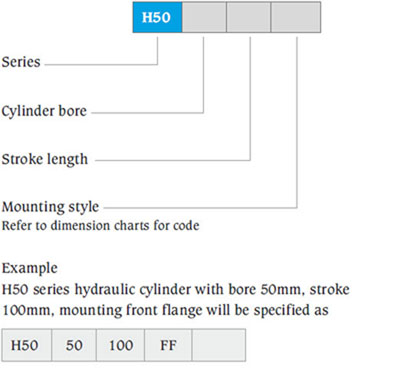

Ordering details of H50 series hydraulic cylinders
Features and specifications
• 9 Standard mounting styles• Bore sizes : 40mm to 150mm
• Piston rods : 16mm to 45mm
• Strokes : available in any practical stroke length
• Maximum working pressure 50 bar
• Single rod designs
• Non-cushioned
• Temperature range : -20 C to +80 C (standard)
• Standard fluid : Mineral oil, DIN 51524 (HL, HLP)
Mounting style

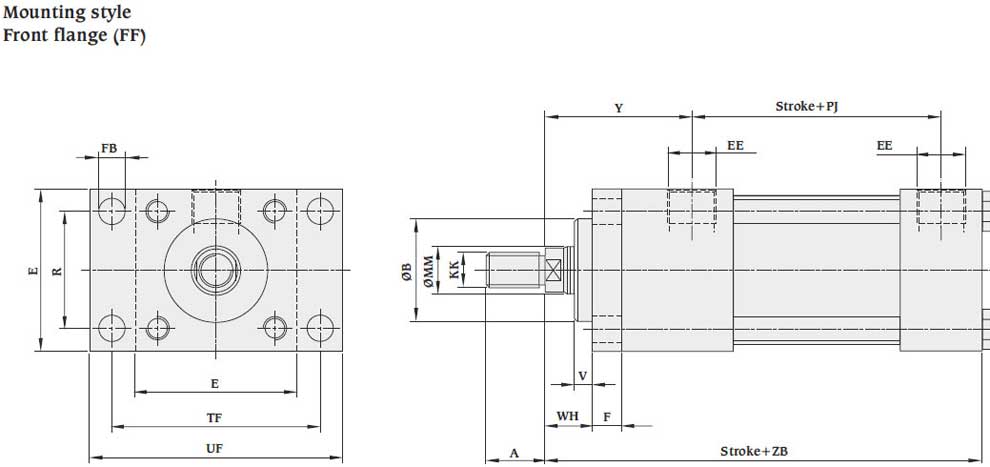

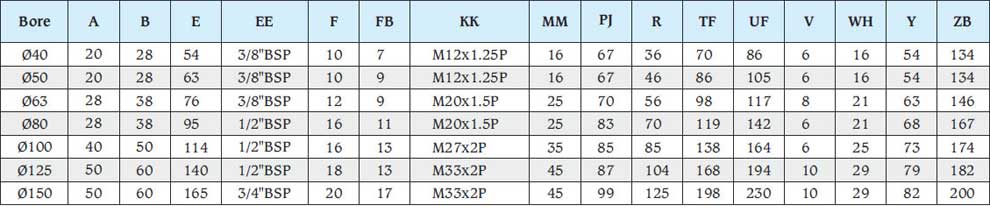

Front flange (FF) Mounting style

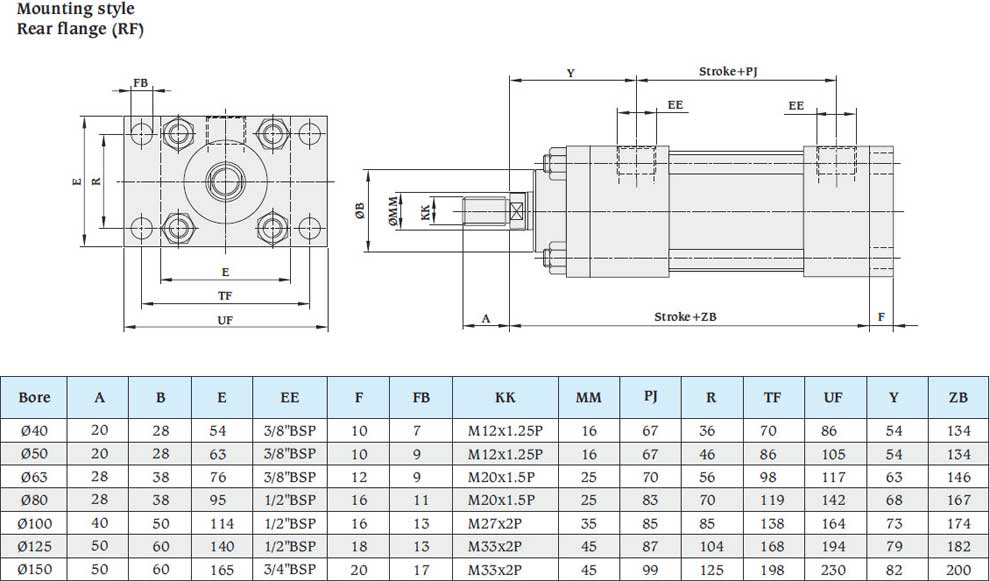

Rear flange (RF) Mounting style

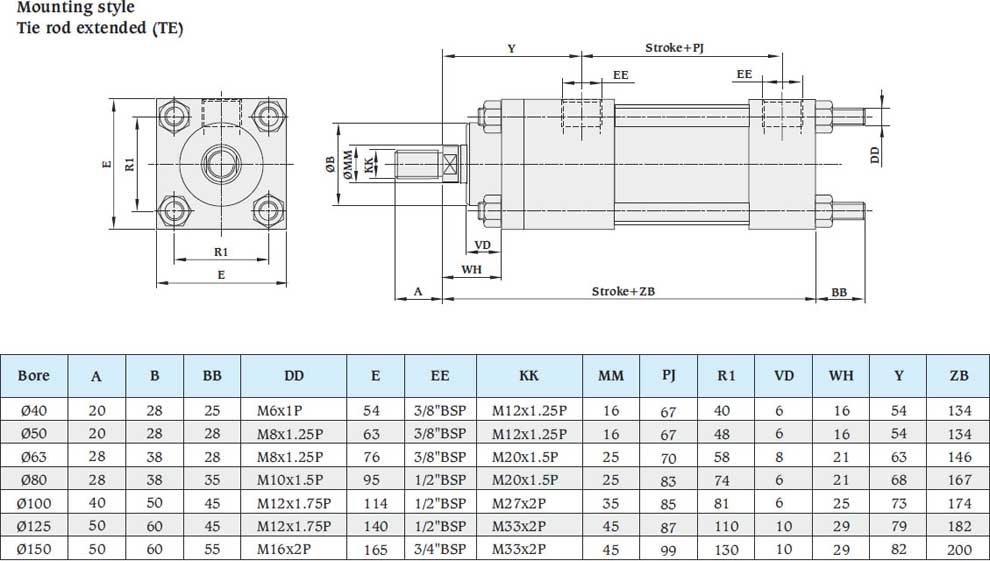

Tie rod extended (TE) Mounting style

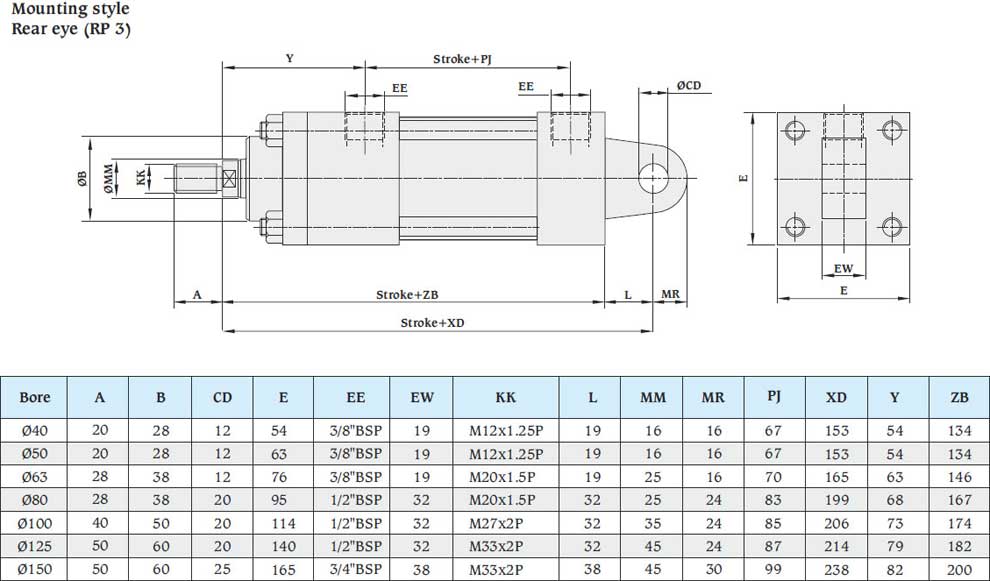

Rear eye (RP 3) Mounting style

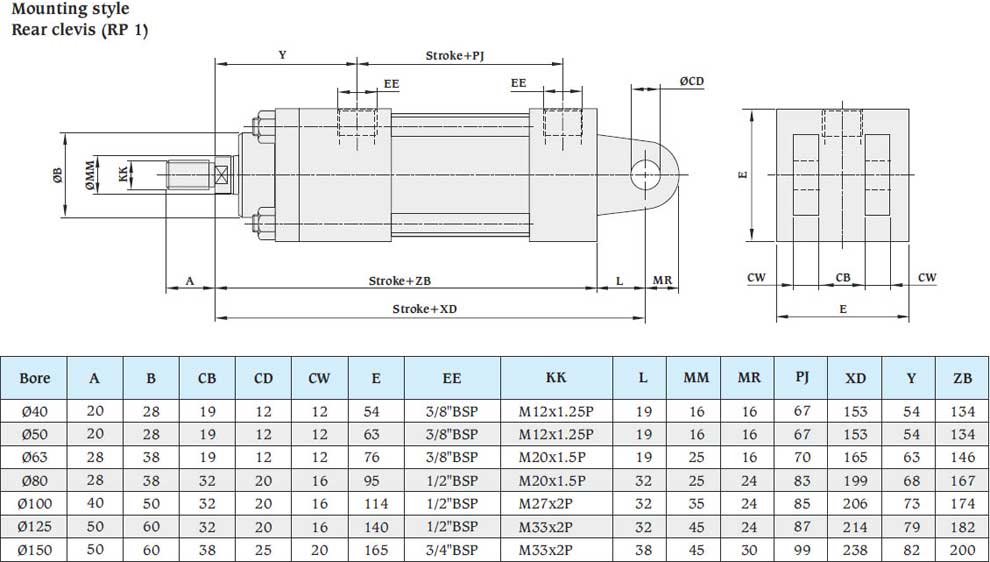

Rear clevis (RP 1)
Mounting style

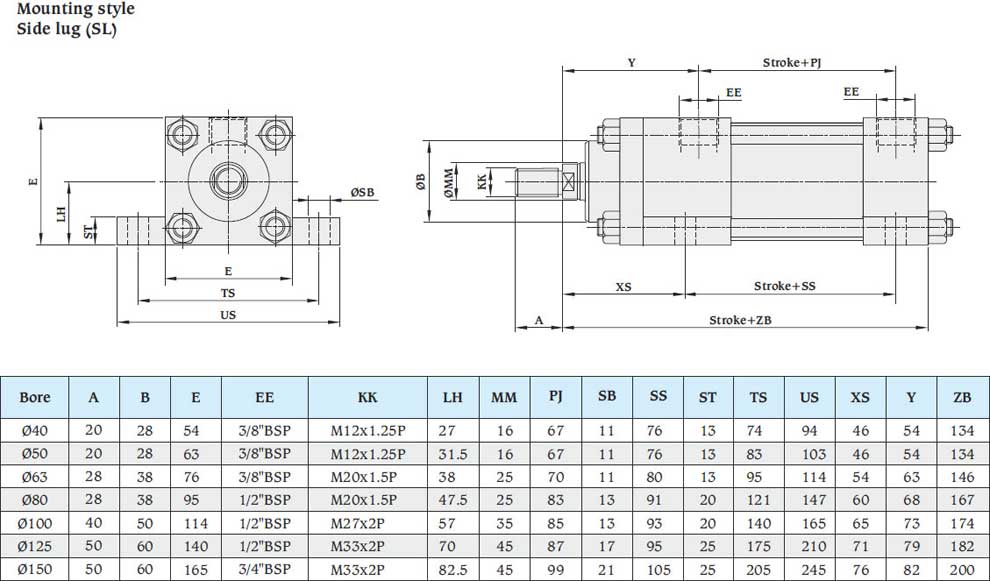

Side lug (SL)
Mounting style

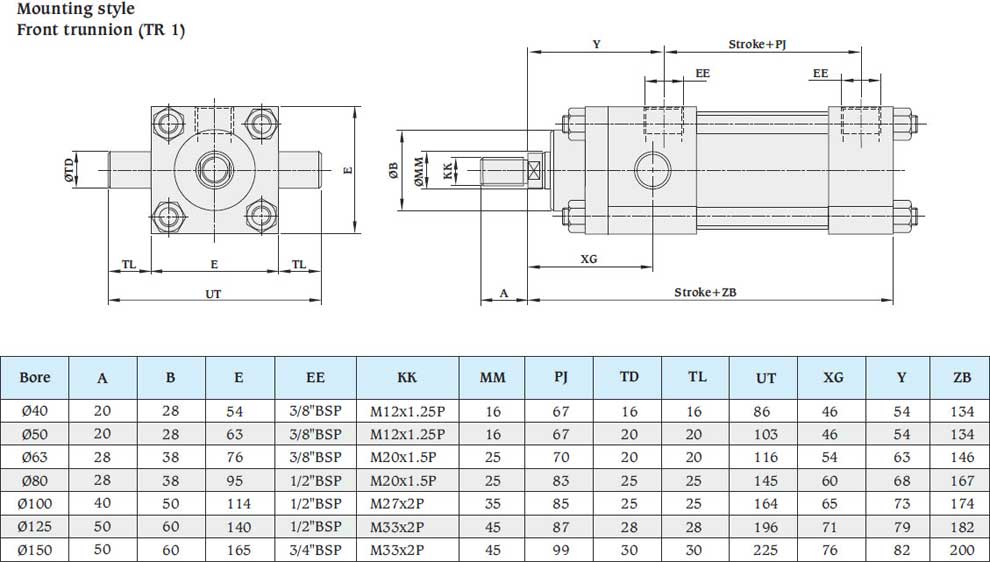

Front trunnion (TR 1)
Mounting style

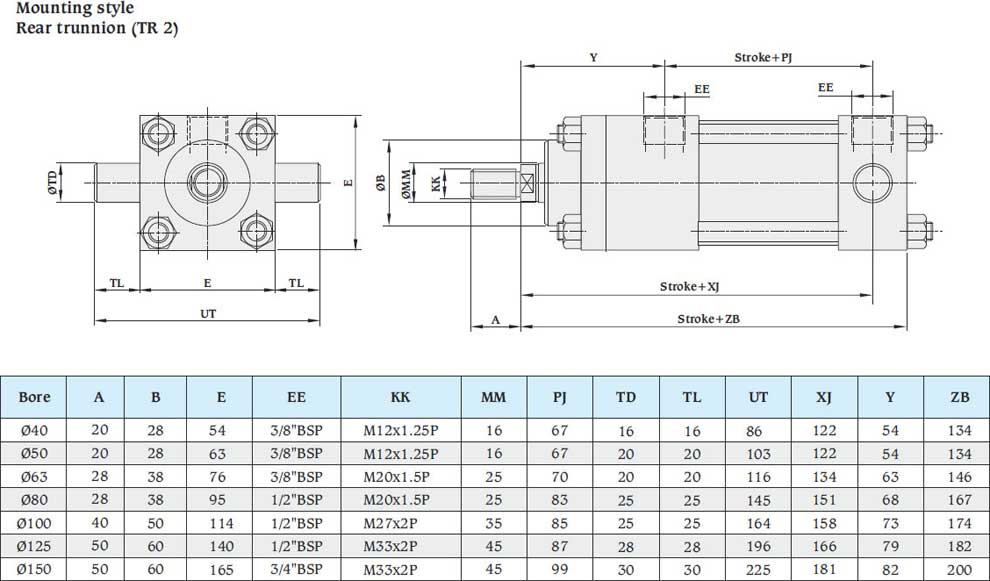

Rear trunnion (TR 2)
Mounting style

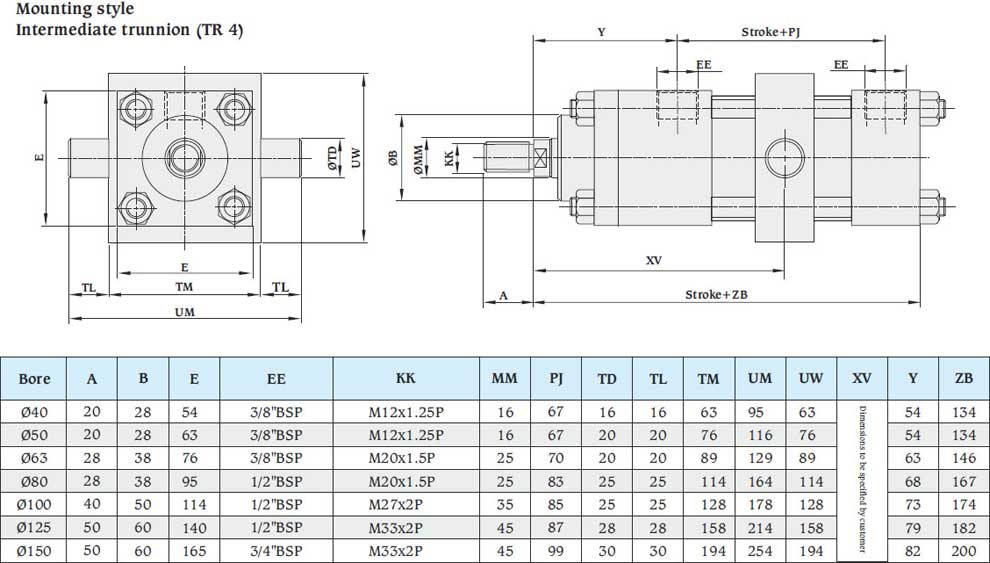

Intermediate trunnion (TR 4)
-
All dimensions are in millimeters unless otherwise stated.
